# Price Widgets

Supra provides embeddable widgets for displaying cryptocurrency data on websites. These widgets can be customised and be integrated using HTML iframes.&#x20;

### Pre requisites

Users who plans to display these widgets need to have access to a SUPRA API key.  Please feel free to request your key [here](https://docs.google.com/forms/d/e/1FAIpQLSfHZr8BHLTY8q_MjbuKZPpdgQS0oGmRIrsn9H-HrieH9eQjFw/viewform).

### Customisation options

* Number of price feeds
* Widget size
* Text colour
* Background colour

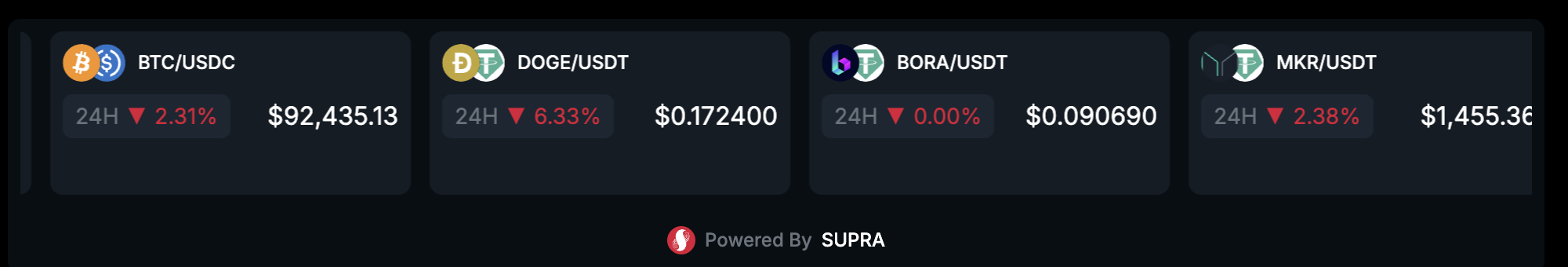

### **Horizontal Moving Price Ticker**

This ticker can be customised to add any number of asset prices, and prices are updated real time. All price tickers are moving left side. &#x20;

<figure><img src="https://2041723214-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpGVprscCeQzW0QYcaJS9%2Fuploads%2F7u54wDsXwxOhv8PbtD0r%2FHorizontal%20Ticker.png?alt=media&#x26;token=e569e402-3a28-4b37-9e1f-4ef7155a9bd9" alt=""><figcaption></figcaption></figure>

Simply copy paste the code snippet below.

{% code overflow="wrap" %}

```html
<iframe src="https://supra.com/data/widgets?widgetType=horizontal&instrumentPairs=btc_usdt,eth_usdt,supra_usdt&x-api-key=YOUR_API_KEY"
    width="100%"
    height="400px"
    frameborder="1"
    scrolling="no"
></iframe>
```

{% endcode %}

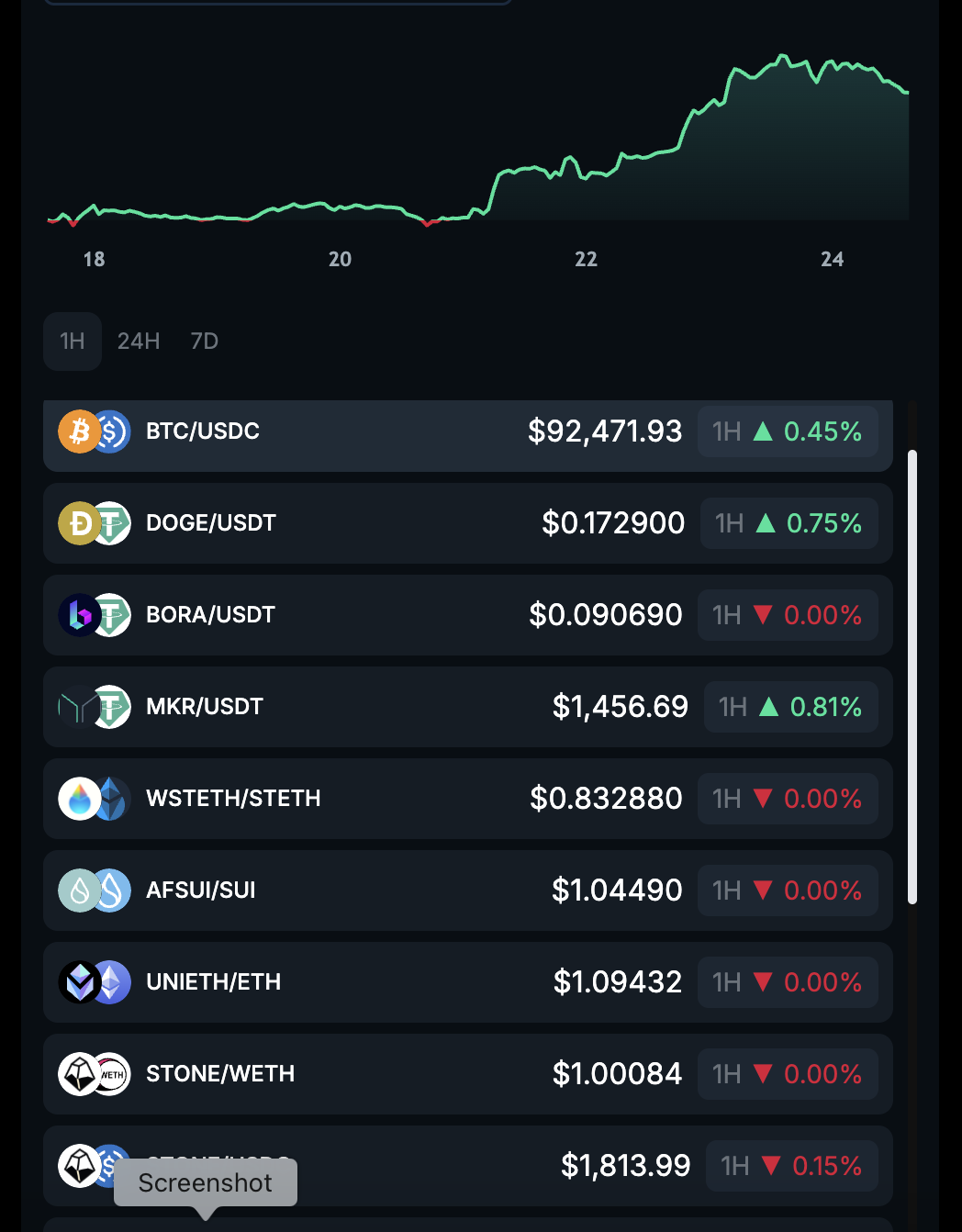

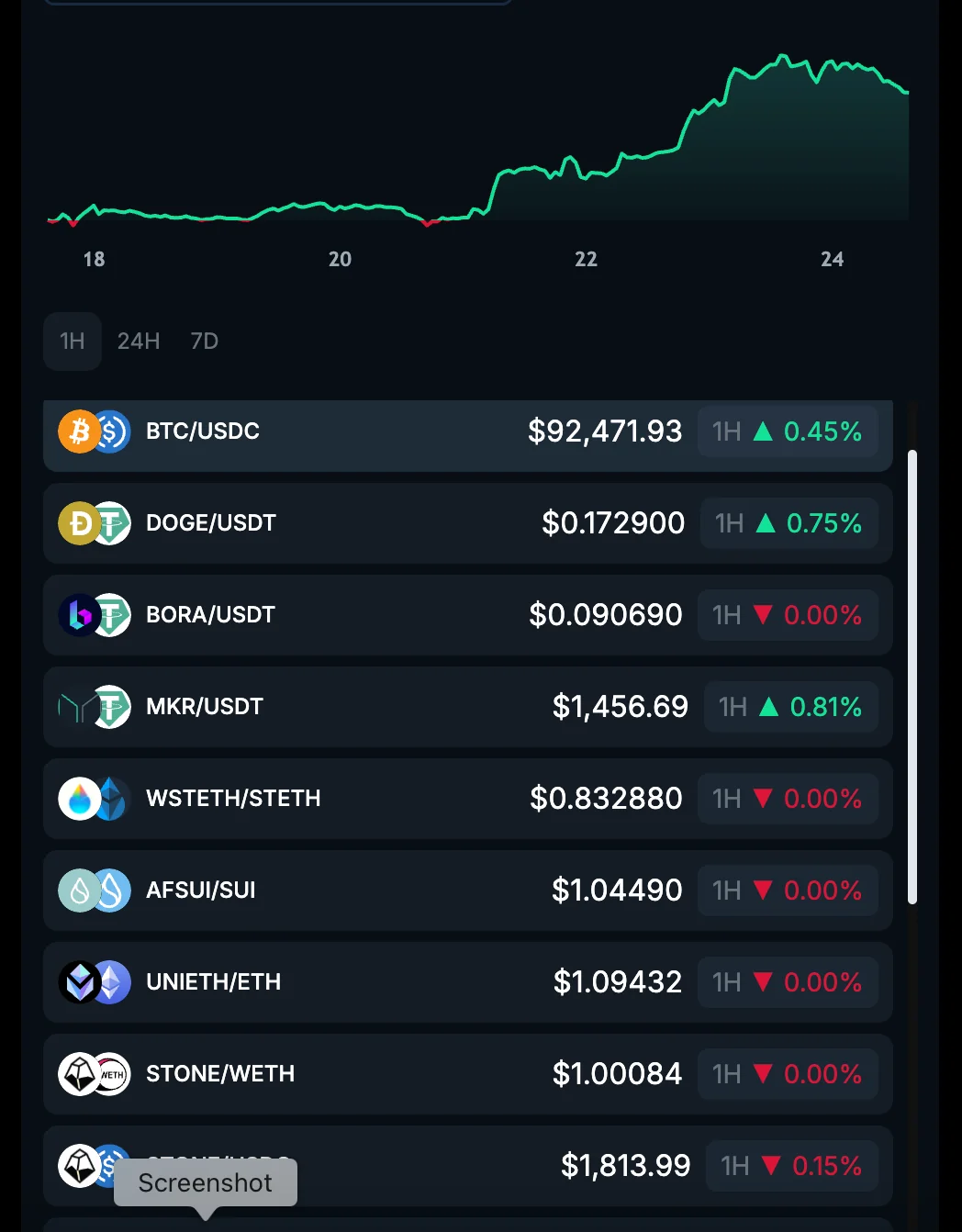

### Vertical Price Widget

Vertical ticker real time prices and the tickers are static,  scrollable and can customise for any number of asset prices.

<img src="https://2041723214-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpGVprscCeQzW0QYcaJS9%2Fuploads%2FjiG4FJw2BdU1OfURL5tx%2Fticker2.png?alt=media&#x26;token=ed8685bc-8d0b-4931-aa2d-fb1437aa5552" alt="" data-size="original">

\
Copy and paste following snippet.&#x20;

{% code overflow="wrap" %}

```html
<iframe
src="https://supra.com/data/widgets?widgetType=vertical&instrumentPairs=btc_usdt,eth_usdt&x-api-key=YOUR_API_KEY"
    width="100%"
    height="800px"
    frameborder="0"
    scrolling="no"
></iframe>
```

{% endcode %}

### Customisation Options

1. textColor :  Sets the colour of the text.\
   Example:\
   `Hex: textColor=black`\
   &#x20;`RGB: textColor=rgb(0, 0, 0)`

2. subTextColor  : Sets the colour of the sub-text.\
   Example:\
   `Hex: subTextColor=%23444 (This sets the color to #444)`\
   &#x20;`RGB: subTextColor=rgb(68, 68, 68)`<br>

3. gridBg : Sets the background colour of the grid.\
   Example:\
   `Hex: gridBg=yellow`\
   &#x20;`RGB: gridBg=rgb(255, 255, 0)`<br>

4. gridBgHover :  Sets the background colour of the grid on hover.\
   Example:\
   `Hex: gridBgHover=green`\
   &#x20;`RGB: gridBgHover=rgb(0, 255, 0)`<br>

5. mainBG :  Sets the main background colour.\
   Example:\
   `Hex: mainBG=red`\
   &#x20;`RGB: mainBG=rgb(255, 0, 0)`<br>

6. chartBgColor :  Sets the background color of the chart.\
   Example:\
   `Hex: chartBgColor=white`\
   `RGB: chartBgColor=rgb(255, 255, 255)`

### Hex Color Codes and URL Encoding

When using Hex values in the URL, ensure that you encode the hash (#) as %23. For example:

* Hex color #444 becomes %23444.
* Hex color #ffffff becomes %23ffffff.<br>

#### Example with Encoded Colors

If you are using Hex values, here’s how the URL would look with the parameters applied:

{% code overflow="wrap" %}

```html
<iframe src="https://supra.com/data/widgets?textColor=white&subTextColor=%23AAAAAA&gridBg=%232D2D2D&gridBgHover=%23F39C12&widgetType=vertical&mainBG=%231D1F27&chartBgColor=%23FFFFFF&x-api-key=YOUR_API_KEY"
    width="100%"
    height="600px"
    frameborder="0"
    scrolling="no"
></iframe>
```

{% endcode %}

#### Example with RGB Colors

{% code overflow="wrap" %}

```html
<iframe src="https://supra.com/data/widgets?textColor=rgb(255,255,255)&subTextColor=rgb(170,170,170)&gridBg=rgb(45,45,45)&gridBgHover=rgb(243,156,18)&widgetType=vertical&mainBG=rgb(29,31,39)&chartBgColor=rgb(255,255,255)&x-api-key=YOUR_API_KEY"
    width="100%"
    height="600px"
    frameborder="0"
    scrolling="no"
></iframe>
```

{% endcode %}
